VOUNOT Bicycle Parking Rack Instruction Manual

1. פּראָדוקט איבערview

The VOUNOT Bicycle Parking Rack is designed to provide an organized and space-saving solution for storing bicycles. This versatile rack can be installed on the floor or mounted to a wall, making it suitable for both indoor and outdoor environments such as garages, sheds, or gardens. Constructed from durable steel, it offers stability and resistance to various weather conditions.

Image 1.1: The VOUNOT Bicycle Parking Rack in use, organizing two bicycles.

שליסל פֿעיִקייטן אַרייַננעמען:

• ארגאניזאציע: Keeps bicycles neatly arranged, preventing clutter.
• פּלאַץ-שפּאָרן: Can be installed on the floor or mounted on a wall to maximize space.
• Adjustable & Modular: Multiple racks can be combined to accommodate more bicycles.
• דוראַבאַל קאַנסטראַקשאַן: Made from coated steel for resistance against weather and wear.
• גרינג אַסעמבלי: דיזיינד פֿאַר שנעל און פּשוט ינסטאַלירונג.

2. זיכערקייַט אינפֿאָרמאַציע

Please read and understand all safety instructions before assembling or using the bicycle parking rack. Failure to follow these instructions may result in injury or damage to the product or property.

• זיכער מאַכן אַז אַלע קאָמפּאָנענטן זענען זיכער באַפעסטיקט בעת די פֿאַרזאַמלונג.
• When wall-mounting, use appropriate hardware for your wall type and ensure the wall can support the weight of the rack and bicycles.
• Do not overload the rack beyond its intended capacity.
• האַלטן קינדער און פּעץ אַוועק פון די פֿאַרזאַמלונג געגנט.
• Periodically check all fasteners for tightness to ensure continued stability.
• Avoid placing the rack in high-traffic areas where it could pose a tripping hazard.

3. פּעקל אינהאַלט

איבערצייגט אז אלע טיילן זענען פאראן איידער איר הייבט אן צוזאמענשטעלן. אויב עפעס טיילן פעלן אדער זענען געשעדיגט, ביטע קאנטאקטירט קאסטומער סופארט.

• Bicycle Parking Rack (3-rack unit)
• מאָונטינג סקרוז (קס 4)
• וואנט אַנגקערז (קס 4)
• באָלץ (קס 6)
• ניסלעך (קס 6)
• וואַשערס (קס 6)

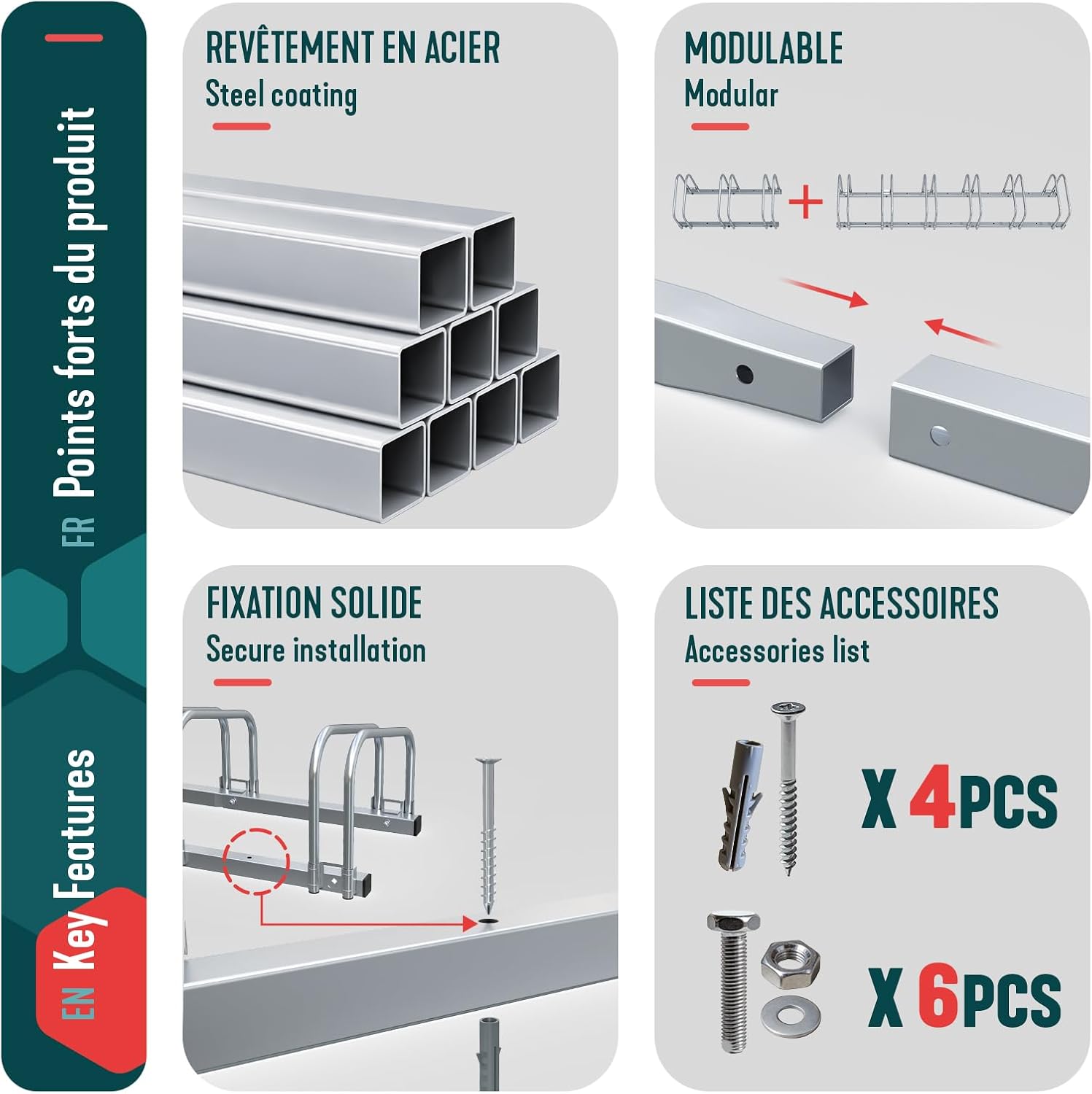

Image 3.1: Key features and included accessories for the VOUNOT Bicycle Parking Rack.

4. סעטאַפּ און ייַנמאָנטירונג

The VOUNOT Bicycle Parking Rack can be installed on the floor or mounted to a wall. Follow these steps for assembly and installation.

4.1 פֿאַרזאַמלונג

1. אויספּאַקן אַלע קאָמפּאָנענטן און קאָנטראָלירן קעגן דער פּאַקעט אינהאַלט ליסטע.
2. Connect the individual rack sections using the provided bolts, nuts, and washers. Ensure all connections are tight.
3. The modular design allows you to combine multiple racks if you have purchased additional units.

4.2 שטאָק ינסטאַלירונג

For floor installation, simply place the assembled rack in your desired location. While the rack is stable with the weight of bicycles, securing it to the floor is recommended for maximum stability, especially in high-traffic areas or if heavy bikes are stored.

1. Position the rack on a flat, stable surface.
2. Mark the drilling points through the pre-drilled holes on the rack's base.
3. Drill pilot holes (if necessary) and secure the rack to the floor using the provided screws and anchors.

4.3 וואנט מאָונטינג

Wall mounting saves floor space and provides a secure storage option.

1. Choose a suitable wall location that can support the weight of the rack and bicycles.
2. Hold the assembled rack against the wall at the desired height.
3. Mark the drilling points through the pre-drilled holes on the rack's base.
4. בויער האָלעס אין די וואַנט און אַרייַנלייגן די וואַנט אַנגקערז.
5. Align the rack with the drilled holes and secure it firmly to the wall using the provided screws.

בילד 4.1: עקס.amples of floor installation (top) and wall mounting (bottom).

5. אַפּערייטינג ינסטרוקטיאָנס

Using the VOUNOT Bicycle Parking Rack is straightforward:

1. Roll the bicycle wheel into one of the rack slots.
2. Ensure the wheel is fully seated and stable within the rack.
3. For optimal space utilization and to prevent handlebars from colliding, it is recommended to alternate the direction of bicycles when parking multiple bikes (e.g., front wheel in, then rear wheel in for the next bike).
4. The rack is designed to accommodate various bicycle types, including commuter bikes and mountain bikes.

Image 5.1: A bicycle wheel correctly placed in the rack, illustrating the compatible tire width.

6. וישאַלט

To ensure the longevity and continued performance of your VOUNOT Bicycle Parking Rack, follow these maintenance guidelines:

• רעגולער דורכקוק: Periodically inspect the rack for any signs of wear, damage, or loose connections.
• טייטן פאַסטענערס: Check all bolts, nuts, and screws regularly and tighten them as needed to maintain stability.
• רייניקונג: ריין די געשטעל מיט אַדamp cloth and mild detergent as necessary. Avoid abrasive cleaners.
• וועטער שוץ: Although the rack is made of coated steel for weather resistance, prolonged exposure to harsh outdoor elements may affect its finish over time.

7. טראָובלעשאָאָטינג

If you encounter any issues with your bicycle parking rack, refer to the following common problems and solutions:

• רעק איז נישט סטאַביל:
  • זיכער מאַכן אַז אַלע פֿאַרזאַמלונג באָלץ זענען זיכער צוגעצויגן.
  • If floor-mounted, verify it is secured to a stable surface.
  • If wall-mounted, ensure the wall anchors and screws are properly installed and the wall material is suitable.
• Bicycles do not fit or are too tight:
  • Check the tire width of your bicycle. The rack is designed for tire widths between approximately 35mm and 60mm. Wider tires (e.g., 2.6" or 29" MTB tires) may not fit or may fit very tightly.
  • Ensure bicycles are parked in alternating directions (front wheel in, then rear wheel in) to prevent handlebar interference.
• Screws do not fit nuts during assembly:
  • Verify you are using the correct screws and nuts for each connection point as per the assembly diagram. If issues persist, contact customer support for replacement parts.

8. ספּעסאַפאַקיישאַנז

Image 8.1: Dimensional drawing of the VOUNOT Bicycle Parking Rack.

9. וואָראַנטי און שטיצן

וואָראַנטי: The product information provided does not specify a warranty period. Please refer to your purchase documentation or contact the retailer for warranty details.

קונה שטיצן: For any questions, missing parts, or assistance with assembly and operation, please contact VOUNOT customer support through their official webפּלאַץ אָדער די זיצער ווו די פּראָדוקט איז פּערטשאַסט.
