הקדמה
This manual provides comprehensive instructions for the installation, operation, and maintenance of your Grandeur 843543 Hardware Arc One-Piece Handleset. This handleset features a classic design with waterfall edges and graceful curves, suitable for exterior doors. It is constructed from solid, forged brass for durability and comes in an Antique Pewter finish with an S Grip and Biarritz Knob. Please read all instructions carefully before beginning installation.
אַרייַנגערעכנט קאַמפּאָונאַנץ
Verify that all components are present before starting installation.
- Deadbolt latch and kit with cylinder
- Exterior one-piece handleset trim with grip
- Interior tall plate trim with turn
- Passage latch and kit
- סקרוז פֿאַר ינסטאַלירונג
- צוויי שליסלען

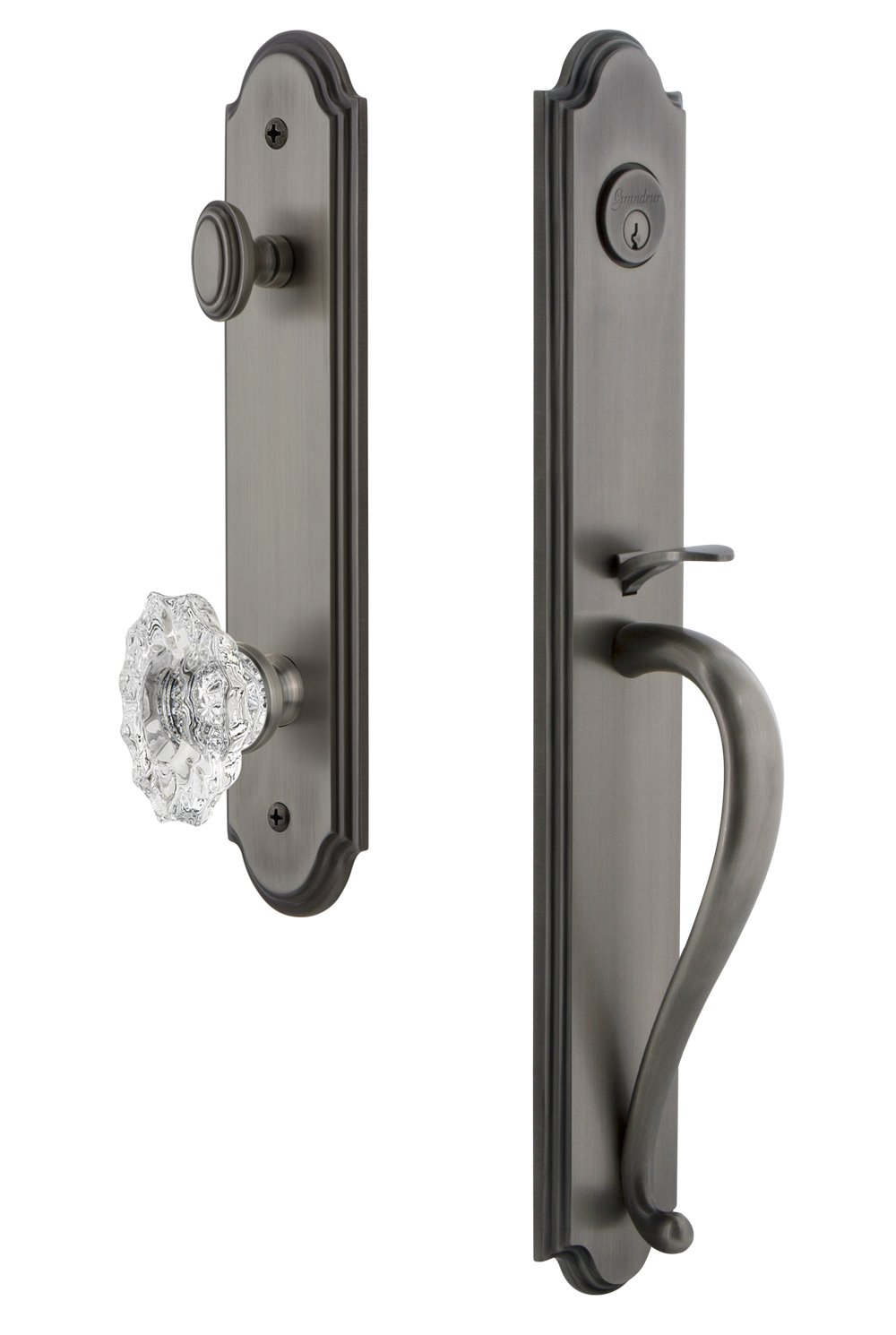

בילד: The Grandeur Arc One-Piece Handleset in Antique Pewter finish. This image displays the complete handleset, including the exterior trim with S-grip, the Biarritz knob, and the deadbolt mechanism.
סעטאַפּ און ינסטאַלירונג
This handleset is designed for easy installation. A drilling template and mounting hardware are included.
- צוגרייטן די טיר: Ensure your door is properly prepped with the correct bore holes and backset (2.375 inches for this model). Use the provided drilling template if new holes are required. This handleset is ideal for doors 84 inches or higher.
- אינסטאַלירן די לאַטשעס: Insert the deadbolt latch and the passage latch into the edge of the door. Secure them with the provided screws. Ensure the latches are oriented correctly for the door swing.
- אינסטאַלירן די אויסערלעכע הענטל-סעט: Position the exterior one-piece handleset trim with the S-grip onto the door, aligning it with the latch mechanisms.
- Install the Interior Trim: Place the interior tall plate trim with the turn knob onto the door, aligning it with the exterior handleset and latches.
- Secure the Handleset: Insert and tighten the mounting screws to secure both the exterior and interior components. Ensure the handleset is level and operates smoothly.
- אינסטאַלירן דעם צילינדער: Insert the deadbolt cylinder into the exterior handleset and secure it from the interior side. Test the key operation.
- לעצט אַדזשאַסטמאַנץ: Check the operation of both the deadbolt and the passage latch. Ensure they retract and extend smoothly without binding. Adjust screws as necessary.
אָפּעראַציע
The Grandeur 843543 Handleset is a single-cylinder lock, meaning it is operated by a key from the exterior and a thumb turn from the interior.
- Locking from Exterior: Insert the key into the exterior cylinder and turn it to extend the deadbolt. Remove the key.
- Unlocking from Exterior: Insert the key into the exterior cylinder and turn it to retract the deadbolt.
- Locking from Interior: Rotate the thumb turn on the interior trim to extend the deadbolt.
- Unlocking from Interior: Rotate the thumb turn on the interior trim to retract the deadbolt.
- עפן די טיר: To open the door, depress the S-grip handle on the exterior or the Biarritz knob on the interior to retract the passage latch.
וישאַלט
Proper care will ensure the longevity and appearance of your handleset.
- רייניקונג: רייניקט די הענטלעך רעגולער מיט א ווייכן, טרוקענעם שטאָף.amp cloth. Avoid abrasive cleaners, solvents, or harsh chemicals, as these can damage the Antique Pewter finish.
- שמירן: Periodically apply a small amount of graphite lubricant or a silicone-based spray to the keyway and latch mechanisms to ensure smooth operation. Do not use oil-based lubricants, which can attract dust and debris.
- דורכקוק: Periodically check all screws and fasteners for tightness. Tighten any loose screws to prevent wobbling or misalignment.
- ענדיקן קער: The Antique Pewter finish is durable, but prolonged exposure to harsh weather conditions may affect its appearance over time.
טראָובלעשאָאָטינג
| פּראָבלעם | מעגלעך סיבה | לייזונג |
|---|---|---|
| Key turns but deadbolt does not retract/extend. | Misalignment of cylinder or latch mechanism; debris in keyway. | Check alignment of components. Apply graphite lubricant to keyway. If problem persists, re-install cylinder and latch. |
| Handle/knob is stiff or hard to turn. | Latch mechanism needs lubrication; screws are too tight. | Lubricate the latch mechanism. Loosen mounting screws slightly, then re-tighten until snug but not overly tight. |
| Door does not latch properly. | Strike plate misalignment; latch bolt not fully extending. | Adjust the strike plate on the door frame. Check for obstructions. Ensure latch is fully extending. |
| Handleset feels loose or wobbly. | מאַונטינג סקרוז זענען פרייַ. | פֿעסט אָנציִען אַלע מאַונטינג שרויפֿן. |
ספּעסאַפאַקיישאַנז
- מאָדעל נומער: 843543
- סאָרט: גראַנדור
- קאָליר / ענדיקן: אַנטיק צין
- סטייל: Arc One-Piece Handleset with S Grip and Biarritz Knob
- לאַק טיפּ: איין צילינדער שליסל שלאָס
- Backset Size: 2.375 אינטשעס
- מאַטעריאַל: Solid, Forged Brass
- נומער וואָג: 7 פונט
- פּראָדוקט דימענשאַנז: 0.5 X 3 X 19 אינטשעס
- רעקאַמענדיד נוצן: Exterior Doors, ideal for doors 84 inches or higher
- UPC: 662972435435
- פאַבריקאַנט: Grandeur Hardware
וואָראַנטי און שטיצן
This Grandeur handleset comes with a לעבן וואָראַנטי. For warranty claims, technical assistance, or replacement parts, please contact Grandeur Hardware directly.
פאַבריקאַנט: Grandeur Hardware
Webפּלאַץ: Visit the Grandeur Store on Amazon (פֿאַר אַלגעמיינע פּראָדוקט אינפֿאָרמאַציע)
