User Manual for Goodman 4 Ton 15.2 SEER2 R-32 AC Condenser

הקדמה

The Goodman 4 TON 15.2 SEER2 R-32 AC Condenser (Model GLXS5BA4810) is a robust outdoor unit designed to provide efficient cooling for residential and light commercial applications. This unit replaces previous models GSXH504810 and GSX160481, offering enhanced performance and reliability. Proper installation and maintenance are crucial for optimal operation and to ensure the validity of the product's warranty.

Image: The Goodman 4 Ton 15.2 SEER2 R-32 AC Condenser, showcasing its gray exterior and top fan.

פּראָדוקט פֿעיִקייטן

• Energy-efficient compressor: Designed for reduced energy consumption and lower operating costs.
• Factory-installed filter drier: Protects the refrigerant system from moisture and contaminants.
• Fully charged for 15’ of tubing length: Pre-charged with R-410a coolant for standard installation requirements.
• דוראַבאַל קאַנסטראַקשאַן: Features a heavy-duty metal guard around the fins for enhanced protection.

סעטאַפּ & ייַנמאָנטירונג

Installation of this AC condenser must be performed by a qualified and certified HVAC professional. Incorrect installation can lead to system malfunction, void the warranty, and pose safety risks. Ensure the installation site meets all local building codes and regulations.

Image: A line drawing illustrating the width (W), depth (D), and height (H) dimensions of the condenser unit.

פאַר-ינסטאַלירונג טשעקס:

• Verify the electrical supply matches the unit's requirements (Voltage: 208, Phase: 230-1).
• Confirm appropriate liquid line valve connection (3/8") and suction line valve connection (7/8").
• Ensure adequate space for airflow and future maintenance around the unit.

Accessories such as thermostats, linesets, and outdoor sensors are sold separately and should be selected based on your specific system requirements.

אַפּערייטינג ינסטראַקשאַנז

Once professionally installed, your Goodman AC Condenser operates in conjunction with your indoor coil and thermostat to provide cooling. Set your desired temperature on the thermostat. The system will automatically cycle on and off to maintain the set temperature, ensuring comfortable indoor conditions.

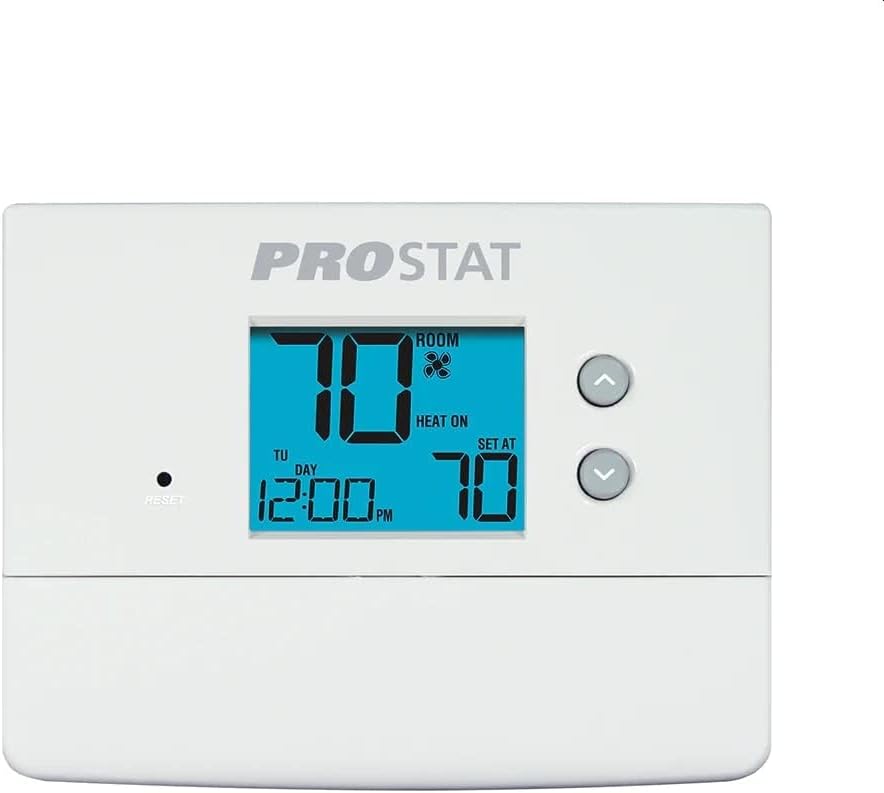

Image: A digital thermostat, typically used to control the air conditioning system, showing a temperature setting.

For detailed operation of your specific thermostat model, please refer to its dedicated user manual.

וישאַלט

Regular maintenance by a qualified HVAC technician is essential to ensure the efficiency, reliability, and longevity of your Goodman AC Condenser. Annual inspections and tune-ups can prevent minor issues from becoming major problems and help maintain energy efficiency.

Recommended Maintenance Includes:

• Cleaning of condenser coils to ensure proper heat transfer.
• Checking refrigerant levels and pressure.
• Inspecting electrical connections and components.
• Lubricating moving parts as necessary.
• Checking the fan motor and blades for wear or damage.

טראָובלעשאָאָטינג

Should you experience any issues with your AC condenser, it is recommended to contact a qualified HVAC professional for diagnosis and repair. Attempting repairs without proper training and tools can be dangerous and may void your warranty.

Common Issues (Require Professional Attention):

• די איינהייט קילט נישט עפעקטיוו.
• Unusual noises or vibrations from the unit.
• Unit not turning on or off.
• ריפרידזשעראַנט ליקס.
• Electrical problems.

ספּעסאַפאַקיישאַנז

וואָראַנטי & שטיצן

The Goodman 4 TON 15.2 SEER2 R-32 AC Condenser comes with a 10-יאָר פּאַרץ לימיטעד וואָראַנטי. This warranty is valid provided the unit is installed by a qualified installer and registered online. It is crucial to adhere to professional installation and maintenance guidelines to ensure your warranty remains active.

Image: A metallic shield graphic indicating a 10-year limited warranty.

For customer support or to inquire about warranty registration, please refer to the Goodman official website or contact your authorized dealer. You can also find general customer support information via the retailer where the product was purchased.
