Holzmann ZS 40HS Geared Head Drill Press

1. הקדמה

Thank you for choosing the Holzmann ZS 40HS Geared Head Drill Press. This manual provides essential information for the safe and efficient operation, setup, and maintenance of your machine. Please read this manual thoroughly before operating the drill press to ensure proper use and to prevent injury or damage.

זיכערקייַט אינפֿאָרמאַציע: Always wear appropriate personal protective equipment (PPE) including safety glasses, hearing protection, and suitable work attire. Ensure the machine is properly grounded and disconnected from the power supply before performing any adjustments or maintenance. Keep the work area clean and well-lit. Do not operate the machine under the influence of drugs or alcohol.

2. פּעקל אינהאַלט

Upon unpacking, please verify that all components are present and undamaged. If any parts are missing or damaged, contact your supplier immediately.

• Holzmann ZS 40HS Geared Head Drill Press unit
• Drill chuck 16 mm
• Reduction sleeve MK4/3
• Reduction sleeve MK3/2
• דריפט שליסל
• ציִבבאַר M12
• אַפּערייטינג מאַנואַל

3. סעטאַפּ און אַסעמבלי

The Holzmann ZS 40HS drill press requires proper assembly and installation to ensure stability and safe operation. Position the machine on a solid, level surface capable of supporting its weight (approximately 350 kg gross weight). Secure the base plate to the floor if necessary.

3.1 קאָמפּאָנענט איבערview

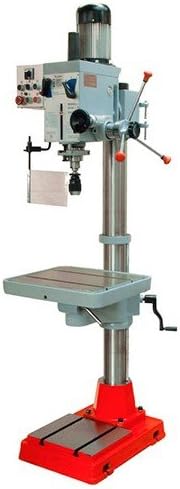

An image showing the complete Holzmann ZS 40HS geared head drill press, highlighting its main components including the motor, drill head, column, work table, and base.

3.2 Work Table Adjustment

The large cast iron work table can be adjusted for height and swivel. Use the crank handle to raise or lower the table to the desired working height. Loosen the locking mechanism to swivel the table around the column. Ensure the table is securely locked in position before starting any operation.

3.3 Drill Head Adjustment

The drill head can also be swiveled and adjusted for height, offering high flexibility for various drilling and milling tasks. Loosen the appropriate locking bolts to adjust the head position, then tighten them firmly.

3.4 Chuck Installation

Insert the appropriate reduction sleeve (MK4/3 or MK3/2) into the spindle taper. Then, insert the 16mm drill chuck into the reduction sleeve. Ensure a firm fit. To remove, use the provided drift key.

4. אַפּערייטינג ינסטרוקטיאָנס

4.1 מאַכט קאַנעקשאַן

Connect the machine to a 400V power supply. Ensure the power switch is in the 'OFF' position before connecting. The machine features a powerful 1100W (S1) / 1500W (S6) motor.

4.2 ספּיד סעלעקציע

The ZS 40HS features an oil bath gearbox with ground and hardened gears for speed selection. Refer to the speed chart on the machine for appropriate RPM settings (95-1600 rpm) based on material and drill bit size. Change speeds only when the machine is stopped.

4.3 וואָרקפּיעסע קלamping

Always secure the workpiece firmly to the work table using clamps or a vise. The T-slot guides (14 mm) on the drill table are designed for this purpose. Never hold the workpiece by hand during operation.

4.4 דרילינג אָפּעראַציע

1. Select the appropriate drill bit and secure it in the chuck.
2. Adjust the work table and drill head to the desired position.
3. Set the spindle speed according to the material.
4. Lower the spindle using the three-arm lever or the precision handwheel for fine adjustment. The depth scale assists in precise depth control.
5. Engage the motor by pressing the 'ON' button.
6. Carefully feed the drill bit into the workpiece. Do not apply excessive force.
7. Once drilling is complete, retract the spindle and switch off the motor.

4.5 Tapping Function

The machine is equipped with an automatic tapping device and left-right spindle rotation. Follow the specific instructions for tapping operations, ensuring the correct tap and speed are used.

5. וישאַלט

Regular maintenance ensures the longevity and optimal performance of your Holzmann ZS 40HS drill press. Always disconnect the machine from the power supply before performing any maintenance.

5.1 רייניקונג

After each use, clean the machine thoroughly. Remove chips and debris from the work table, column, and drill head. Use a brush or vacuum cleaner; never use compressed air as it can embed chips into moving parts.

5.2 לובריקיישאַן

The gearbox operates in an oil bath. Regularly check the oil level and replenish or replace as needed, following the manufacturer's recommendations for oil type and frequency. Lubricate all moving parts, such as the column and spindle, with appropriate machine oil.

5.3 Chuck Care

Keep the drill chuck clean and free of rust. Periodically apply a light coat of oil to the jaws to ensure smooth operation. Inspect the chuck for wear or damage and replace if necessary.

5.4 דורכקוק

Regularly inspect all bolts, nuts, and fasteners for tightness. Check the power cord for any signs of damage. Ensure the plexiglass chuck guard is intact and functioning correctly.

6. טראָובלעשאָאָטינג

This section addresses common issues you might encounter with your drill press. For problems not listed here, or if solutions do not resolve the issue, contact qualified service personnel.

7. טעכניש ספּעסאַפאַקיישאַנז

8. וואָראַנטי און שטיצן

For warranty information, please refer to the terms and conditions provided at the time of purchase or contact your authorized Holzmann dealer. For technical support, spare parts, or service inquiries, please contact your supplier or the Holzmann customer service department. Always provide the model number (ZS 40HS) and serial number of your machine when seeking assistance.
