TimeMist 1047809 White Settings Metered Dispenser

הקדמה

This manual provides comprehensive instructions for the proper installation, operation, and maintenance of your TimeMist 1047809 White Settings Metered Dispenser. Please read this manual thoroughly before using the device to ensure safe and efficient operation.

זיכערקייַט אינפֿאָרמאַציע

• Keep the dispenser out of reach of children and pets.
• Do not spray directly onto food, fabrics, or surfaces that may be damaged by fragrance.
• Use only TimeMist brand refills designed for this dispenser.
• Do not expose batteries to extreme heat or dispose of them in fire.
• If the dispenser is damaged, do not attempt to repair it. Contact customer support.
• Ensure proper ventilation when using the dispenser in enclosed spaces.

פּראָדוקט איבערview

The TimeMist 1047809 Metered Dispenser is designed to automatically release fragrance at set intervals, maintaining a consistent fresh environment. Key components include:

• שפּריץ נעזל: Where the fragrance is dispensed.
• ליכט סענסאָר: Detects ambient light to enable day/night operation modes.
• קאָנטראָל פּאַנעל: Located inside the dispenser for setting spray intervals and light sensor modes.
• באַטערי אָפּטייל: Holds four AA batteries (not included).
• Refill Canister Slot: Area for inserting the fragrance refill.

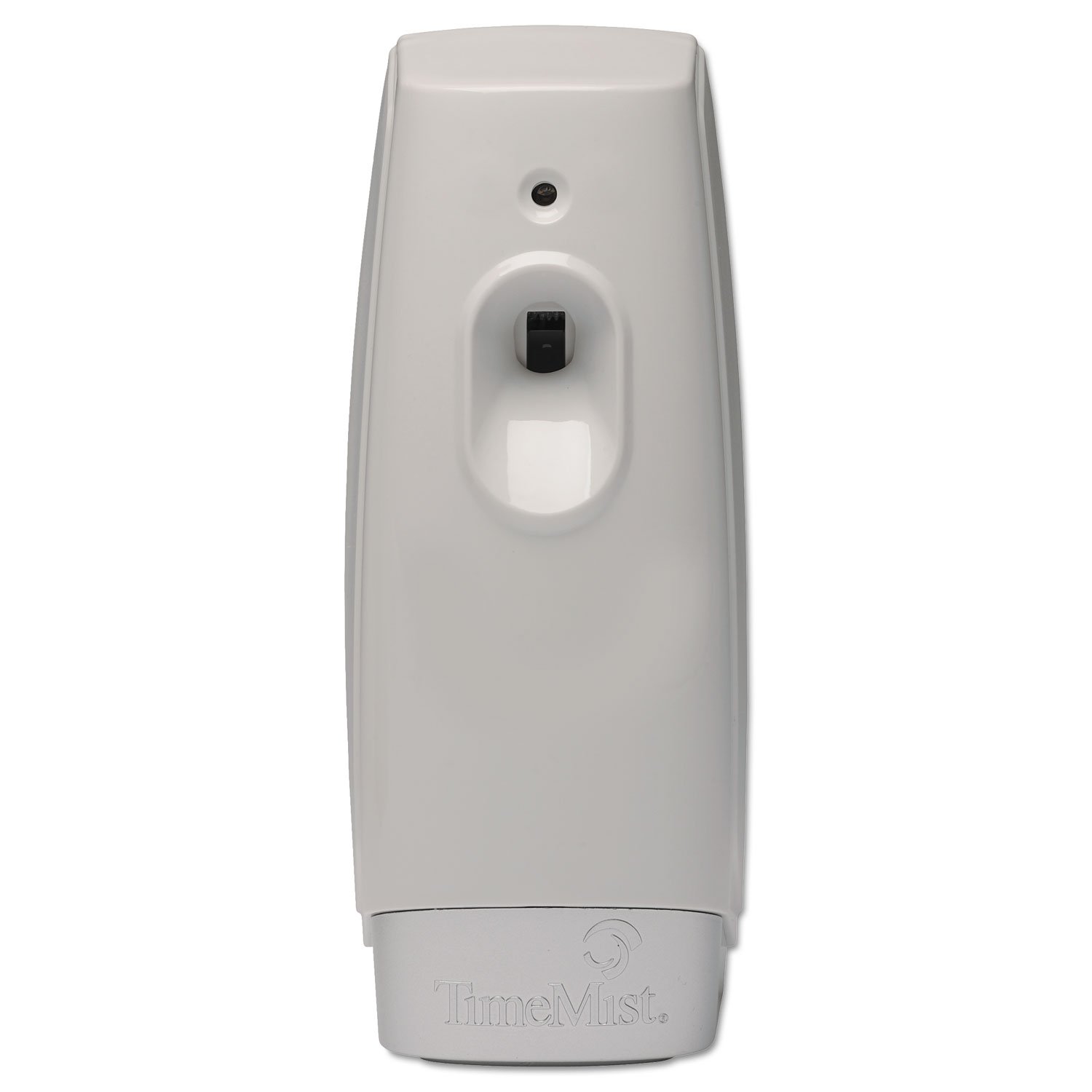

בילד 1: פראָנט view of the TimeMist 1047809 White Settings Metered Dispenser. This image displays the front of the dispenser, showing the spray nozzle and the light sensor located above it. The TimeMist brand name is visible at the bottom.

סעטאַפּ

1. Opening the Dispenser

To access the internal components, gently flip up the front cover of the dispenser. This will reveal the battery compartment and the refill canister slot.

2. באַטאַרייע ייַנמאָנטירונג

1. Locate the battery compartment inside the dispenser.
2. Insert four (4) AA batteries (not included), ensuring correct polarity (+/-) as indicated in the compartment.
3. The dispenser is designed to operate efficiently for up to two years on a fresh set of batteries.

3. Refill Canister Installation

1. Ensure the dispenser is turned off or in a paused state before inserting a refill.
2. Align the nozzle of the TimeMist 6.6oz aerosol fragrance refill (sold separately) with the dispenser's spray mechanism.
3. Gently push the refill canister into the slot until it is securely seated.

4. Mounting the Dispenser

Mount the dispenser securely on a wall or flat surface using appropriate hardware (not included). Ensure it is placed in an area where the fragrance can disperse effectively and away from direct airflow that might interfere with the light sensor.

אַפּערייטינג ינסטראַקשאַנז

After installing batteries and a fragrance refill, configure the dispenser settings using the internal controls.

1. Setting Spray Interval

Locate the interval setting switch or dial inside the dispenser. You can choose from the following spray frequencies:

• 7.5 מינוט: For high-traffic areas or stronger fragrance needs.
• 15 מינוט: Standard setting for most environments.
• 30 מינוט: For lighter fragrance needs or smaller spaces.

2. Configuring Light Sensor Mode

The light sensor allows the dispenser to operate only when needed, conserving fragrance and battery life. Select one of the following modes:

• ליכט: Dispenses only when ambient light is detected (daytime operation).
• טונקל: Dispenses only when ambient light is low or absent (nighttime operation).
• 24 שעה: Dispenses continuously regardless of light conditions.

3. באַטערי לעוועל ינדיקאַטאָר

The dispenser features indicator lights to show the remaining power level of your batteries. Refer to the internal markings for specific light patterns and their meaning (e.g., green for good, red for low).

4. Closing the Dispenser

Once settings are configured, close the front cover of the dispenser securely. The dispenser will begin operation according to your selected settings.

וישאַלט

1. רייניקונג

To maintain optimal performance and appearance, periodically wipe the exterior of the dispenser with a soft, damp טוך. ניצט נישט קיין שרײַבנדיקע רייניגער און טונקט נישט אײַן דעם אַפּאַראַט אין וואַסער.

2. Refill Replacement

When the fragrance level is low or depleted, replace the refill canister. Follow the "Refill Canister Installation" steps in the Setup section. Always use TimeMist 6.6oz refill sprays for proper fit and function.

3. באַטערי פאַרבייַט

Replace all four AA batteries when the low battery indicator illuminates or when the dispenser ceases to operate. Refer to the "Battery Installation" steps in the Setup section.

טראָובלעשאָאָטינג

ספּעסאַפאַקיישאַנז

וואָראַנטי אינפֿאָרמאַציע

For detailed warranty information, please refer to the documentation included with your purchase or visit the official TimeMist webזייטל. גאַראַנטיע טערמינען און באדינגונגען קענען זיין אַנדערש.

קונה שטיצן

If you have any questions, require assistance, or need to report an issue with your TimeMist dispenser, please contact TimeMist customer support through their official webזייטל אדער די קאָנטאַקט אינפֿאָרמאַציע וואָס איז צוגעשטעלט אויף דער פּראָדוקט פּאַקאַדזשינג.

Webפּלאַץ: www.timemist.com (באַמערקונג: דאָס איז אַ פּלאַץ האָלדער URL, ביטע באַשטעטיקן דעם פאַקטישן פאַבריקאַנט'ס webפּלאַץ.)
