Alctron T02A Pencil Microphone for Instruments Instruction Manual

1. הקדמה

The Alctron T02A is a high-performance, robust, and compact FET condenser pencil microphone specifically designed for capturing the nuances of various instruments. Its advanced design ensures clear and accurate sound reproduction, making it suitable for studio recording and live sound applications. This manual provides essential information for the proper setup, operation, and maintenance of your T02A microphone.

2. פֿעיִקייטן

• High-performance FET condenser microphone design.
• Equipped with a 22mm large gold-plated double diaphragm capsule.
• Standard cardioid polar pattern, with optional omnidirectional and hypercardioid capsules available separately.
• Wide frequency response range of 20 Hz to 20 kHz.
• High sensitivity for detailed sound capture.
• Robust and compact construction for durability and ease of placement.
• XLR connectivity for professional audio systems.

3. פּעקל אינהאַלט

ביטע קאָנטראָלירט דעם פּעקל קערפֿול צו זיכער מאַכן אַז אַלע זאַכן זענען דאָרט:

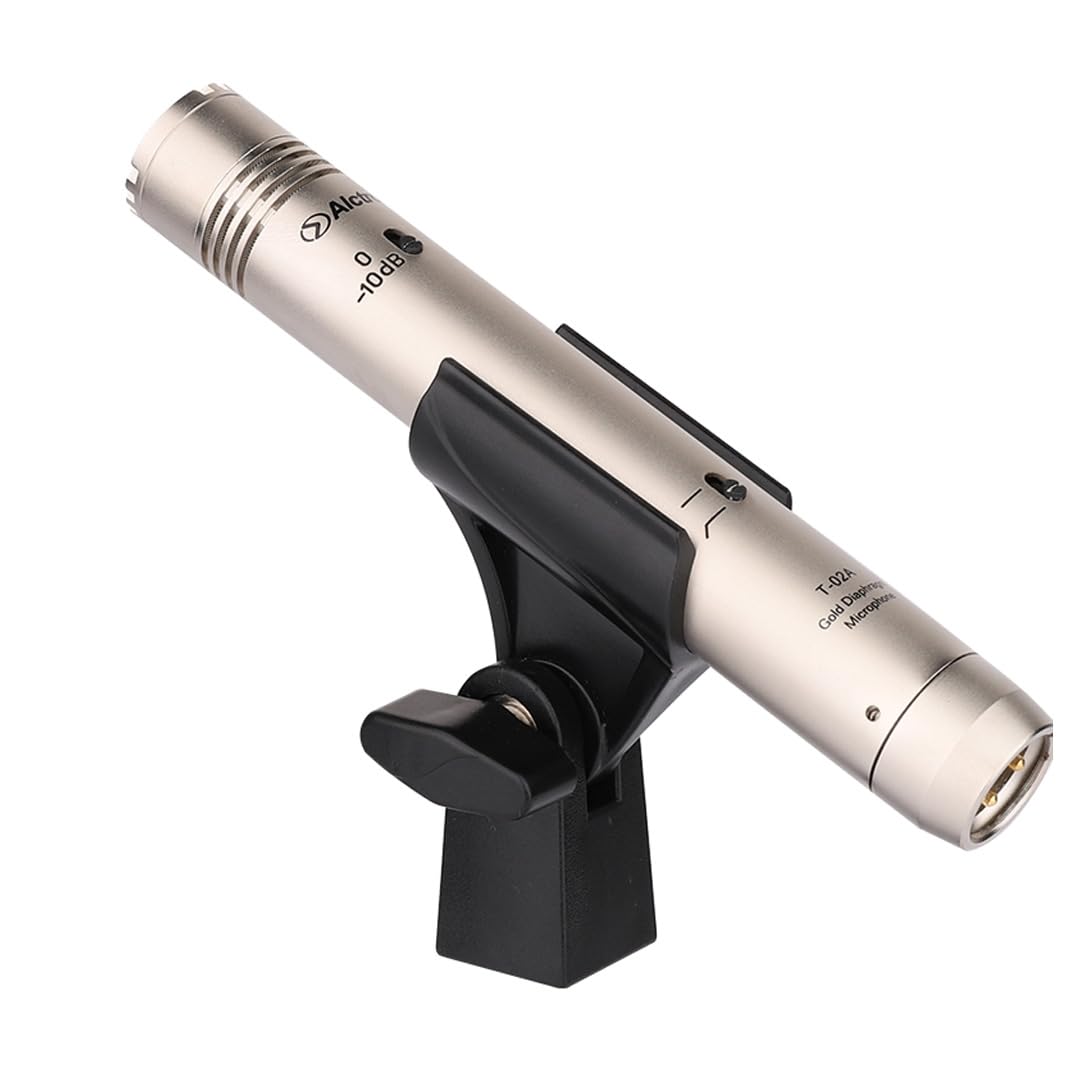

• Alctron T02A Pencil Microphone Unit
• Microphone Clip/Holder
• באַניצער מאַנואַל

4. סעטאַפּ

Follow these steps to set up your Alctron T02A microphone:

1. מאַונטינג די מיקראָפאָן: Secure the T02A microphone into the provided microphone clip. Attach the clip to a suitable microphone stand.
2. קאַנעקטינג די קאַבלע: Connect a standard 3-pin XLR cable to the microphone's output connector. Connect the other end of the XLR cable to an audio interface, mixer, or preamplifier that provides 48V phantom power.
3. אַקטאַווייטינג פאַנטאָם מאַכט: The Alctron T02A is a condenser microphone and requires 48V phantom power to operate. Ensure that phantom power is activated on your audio interface, mixer, or preamplifier. Failure to provide phantom power will result in no sound output.
4. ערשט אָרט: Position the microphone appropriately for the instrument you intend to record. For most instruments, start with the microphone a few inches away, pointing towards the sound source. Adjust as needed to achieve the desired sound.

5. אָפּעראַציע

Once the microphone is set up and connected, follow these guidelines for optimal operation:

• געווינען Stagינג: Set the input gain on your audio interface or mixer. Start with the gain low and gradually increase it while monitoring the signal. Aim for a strong signal level without clipping (distortion).
• פּאָלאַר מוסטער סעלעקציע: The standard T02A comes with a cardioid capsule. If you have optional omnidirectional or hypercardioid capsules, ensure the correct capsule is securely attached for your desired pickup pattern.
• מיקראָפאָן אָרט: Experiment with microphone placement relative to the instrument. Small changes in distance and angle can significantly affect the recorded sound. For acoustic instruments, consider placing the microphone to capture a balanced sound, avoiding excessive proximity effect (increased bass response when close to the source).
• מאָניטאָרינג: Always monitor the microphone's output through headphones or studio monitors to ensure the sound is clear and free of unwanted noise or distortion.

6. וישאַלט

Proper maintenance will extend the life and performance of your microphone:

• רייניקונג: Use a soft, dry cloth to clean the microphone body. Do not use liquid cleaners or solvents, as they can damage the microphone's finish or internal components. Avoid touching the microphone capsule directly.
• סטאָרידזש: When not in use, store the microphone in its original packaging or a protective case to shield it from dust, moisture, and physical damage.
• האַנדלינג: Handle the microphone with care. Avoid dropping it or subjecting it to strong impacts, which can damage the delicate internal components.

7. טראָובלעשאָאָטינג

If you encounter issues with your Alctron T02A microphone, refer to the following common problems and solutions:

• קיין סאָונד רעזולטאַט:
  • זיכער מאַכן אַז 48V פאַנטאָם פּאַוער איז אַקטיוויירט אויף אייער אַודיאָ צובינד/מיקסער.
  • Check all XLR cable connections for proper seating.
  • Verify that the input gain on your audio device is turned up.
  • פּרובירט מיט אַן אַנדער XLR קאַבל אָדער אינפוט קאַנאַל אויב פֿאַראַן.
• פאַרקרימט סאָונד:
  • רעדוצירט די אינפוט געווינס אויף אייער אודיאָ אינטערפייס/מיקסער צו פאַרמייַדן קליפּינג.
  • פֿאַרגרעסערט די דיסטאַנץ צווישן דעם מיקראָפֿאָן און דער קלאַנג-מקור.
  • זיכער מאַכן אַז דער מיקראָפאָן איז נישט איבערגעלאָדן דורך צו הויכע געזונט-קוואַלן.
• זשומען אדער גערויש:
  • Check for proper grounding of all audio equipment.
  • Ensure XLR cables are balanced and in good condition.
  • Move the microphone and cables away from power cables, fluorescent lights, or other sources of electromagnetic interference.

8. ספּעסאַפאַקיישאַנז

9. וואָראַנטי און שטיצן

For information regarding warranty coverage, technical support, or service, please refer to the warranty card included with your product or contact your authorized Alctron dealer or the manufacturer directly. Keep your proof of purchase for any warranty claims.
