Holzmann BT1220 Belt and Disc Sander Instruction Manual

1. הקדמה און סאַפעטי אינפֿאָרמאַציע

This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your Holzmann BT1220 Belt and Disc Sander. Please read and understand all instructions before operating the machine. Keep this manual for future reference.

1.1 בדעה נוצן

The Holzmann BT1220 is designed for sanding wood, plastics, and similar materials using both a sanding belt and a sanding disc. It is intended for use in workshops and by skilled individuals. Any other use is considered improper and may lead to hazards.

1.2 אַלגעמיינע זיכערקייַט וואָרנינגז

• טראָגט שטענדיק פּאַסיקע פּערזענלעכע שוץ-עקוויפּמענט (PPE), אַרייַנגערעכנט זיכערהייט ברילן, הערן-שוץ און אַ שטויב-מאַסקע.
• זיכער מאַכן אַז די אַרבעטס־געגנט איז ריין, גוט באַלויכטן, און פֿרײַ פֿון שטערונגען.
• האַלט קינדער און פֿאַרבייגייער אַוועק פֿון דער אַרבעטנדיקער מאַשין.
• Do not operate the sander in damp אָדער נאַס טנאָים.
• שטענדיק אָפּשטעקן די מאַכט צושטעל איידער איר מאַכט אַדזשאַסטמאַנץ, טוישן אַקסעסאָריעס, אָדער דורכפירן וישאַלט.
• Securely fasten the workpiece before sanding. Never sand freehand.
• Do not force the tool. Allow the machine to work at its intended speed.
• קעסיידער דורכקוקן די מאַכט שנור פֿאַר שעדיקן.

2. פּראָדוקט איבערview

The Holzmann BT1220 is a versatile sanding machine featuring both a belt sanding unit and a disc sanding unit. This combination allows for a wide range of sanding tasks, from rough material removal to fine finishing.

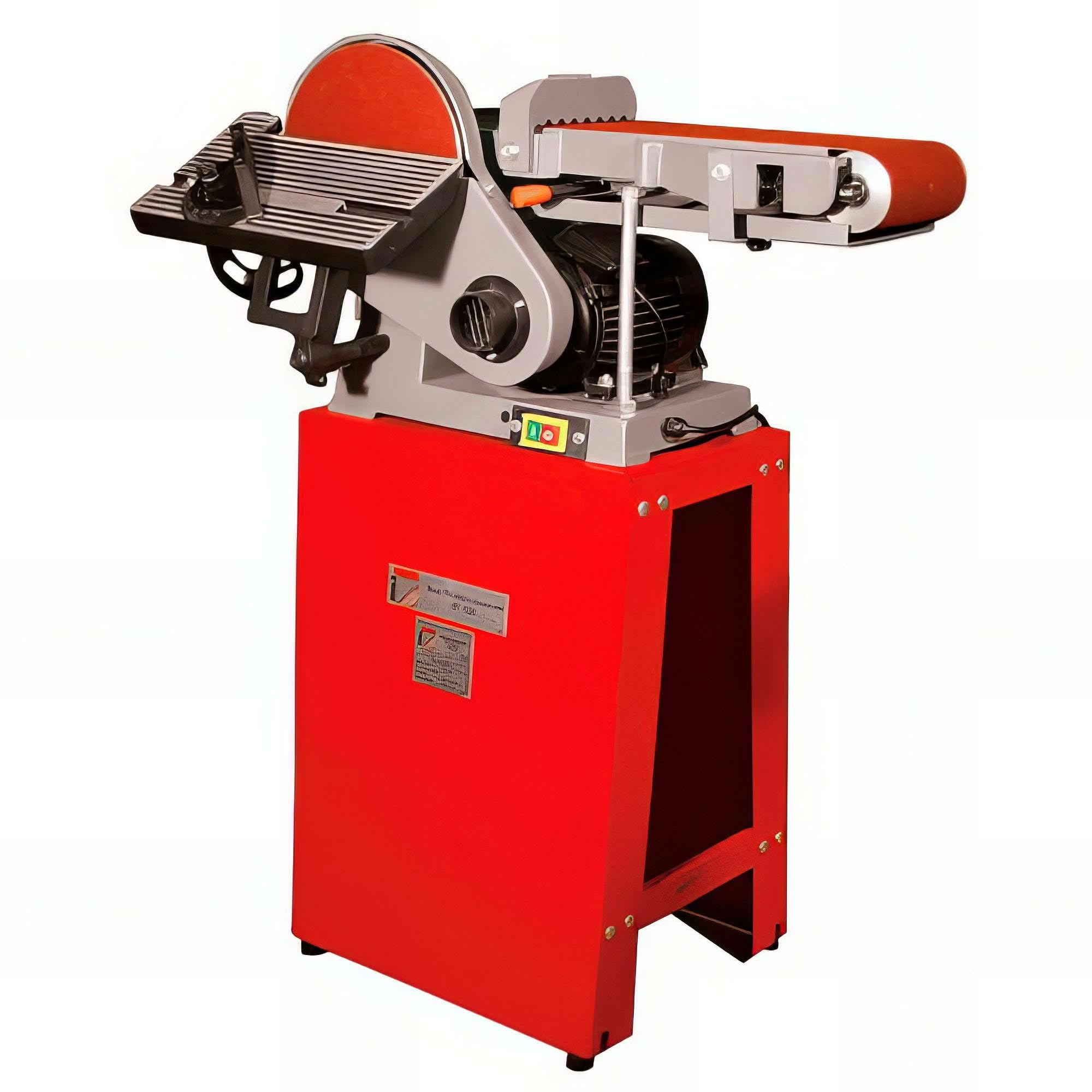

פיגורע 1: Holzmann BT1220 Belt and Disc Sander. This image shows the complete sanding machine with both the belt and disc sanding units visible, ready for operation.

2.1 שליסל קאַמפּאָונאַנץ

• Sanding Belt Unit: For linear sanding operations.
• Sanding Disc Unit: For face sanding and shaping.
• אַרבעט טיש: Adjustable table for supporting workpieces during disc sanding.
• מאָטאָר: Powers both sanding units.
• אָנ / אַוועק באַשטימען: For controlling power to the machine.

3. סעטאַפּ

3.1 אַנפּאַקינג און אַסעמבלי

1. קערפאַלי באַזייַטיקן אַלע קאַמפּאָונאַנץ פון די פּאַקקאַגינג.
2. Inspect for any shipping damage. Report any damage immediately to your supplier.
3. Assemble any detached components according to the diagrams in the separate assembly guide (if provided). Ensure all fasteners are securely tightened.
4. Mount the sander on a stable workbench or stand, ensuring it is securely bolted down to prevent movement during operation.

3.2 עלעקטריקאַל קאַנעקשאַן

• Ensure the power supply matches the machine's requirements (230V).
• Connect the machine to a properly grounded electrical outlet.
• ניצט נישט קיין פארלענגערונג שנורן סיידן עס איז טאקע נויטיג, און זייט זיכער אז זיי זענען פאסיג פאר די מאשין'ס מאכט באדערפענישן.

4. אַפּערייטינג ינסטרוקטיאָנס

Before starting, ensure all safety guards are in place and the workpiece is properly secured.

4.1 Belt Sanding Operation

1. Select the appropriate grit sanding belt for your task.
2. Adjust the belt unit to the desired angle (horizontal or vertical).
3. קער אויף די מאַשין מיט די אָנ / אַוועק באַשטימען.
4. Gently bring the workpiece into contact with the moving sanding belt. Apply even, moderate pressure.
5. Move the workpiece smoothly across the belt to ensure even material removal and prevent gouging.
6. When finished, turn off the machine and wait for the belt to stop completely before removing the workpiece.

4.2 Disc Sanding Operation

1. Attach the desired grit sanding disc to the disc plate.
2. Adjust the work table to the desired angle relative to the sanding disc.
3. קער אויף די מאַשין.
4. Present the workpiece to the sanding disc, always on the downward-rotating side of the disc (left side for most setups) to prevent the workpiece from being thrown.
5. Use the work table to support the workpiece and guide it smoothly across the disc.
6. Turn off the machine and allow the disc to stop before removing the workpiece.

5. וישאַלט

Regular maintenance ensures the longevity and safe operation of your sander. Always disconnect the power before performing any maintenance.

5.1 רייניקונג

• After each use, clean dust and debris from the machine using a brush or vacuum cleaner.
• זיכער מאַכן אַז ווענטילאַציע עפענונגען זענען ריין צו פאַרמייַדן איבערהיצונג.
• Do not use solvents or harsh chemicals that could damage plastic parts or paint.

5.2 Replacing Sanding Belts and Discs

• גאַרטל פאַרבייַט: Release the belt tensioning lever, remove the old belt, and install a new one, ensuring it is centered and tensioned correctly.
• דיסק אויסטויש: Peel off the old adhesive disc and apply a new one, aligning it carefully with the disc plate.
• Always use sanding belts and discs of the correct size and type for the machine.

6. טראָובלעשאָאָטינג

Before attempting any repairs, always disconnect the power supply.

7. ספּעסאַפאַקיישאַנז

8. וואָראַנטי און שטיצן

For warranty information, technical support, or spare parts, please contact your authorized Holzmann dealer or the manufacturer directly. Keep your purchase receipt as proof of purchase.
