Scheppach HSC130 Stone Splitter

1. הקדמה און איבערview

The Scheppach HSC130 Stone Splitter is a robust manual tool designed for precise and efficient splitting of various paving materials. It is ideal for cutting paving stones, curb stones, composite stones, and slabs to the desired size for landscaping and construction projects.

Key features include a telescopic lever for reduced effort, a solid yet weight-optimized construction for stable cutting, and a spring-loaded table support that ensures clean cutting results. The durable reversible blade offers four cutting edges for extended use.

Image 1.1: The Scheppach HSC130 Stone Splitter, shown with examples of split stones.

2. זיכערקייַט אינסטרוקציעס

Always prioritize safety when operating the stone splitter. Failure to follow these instructions may result in injury or damage to the equipment.

• לייענען דעם מאַנואַל: Familiarize yourself with all operating instructions and safety warnings before use.
• טראָגן פּראַטעקטיוו גאַנג: Always wear safety glasses, heavy-duty gloves, and sturdy footwear. Hearing protection is recommended.
• סטאַביל אַרבעט געגנט: Operate the splitter on a firm, level, and stable surface to prevent tipping.
• האַלטן קלאָר: Ensure no bystanders, especially children, are near the work area during operation.
• דורכקוקן איידער נוצן: Check the blade and all components for damage or wear before each use. Do not use if damaged.
• Proper Stone Placement: Ensure the stone is correctly positioned and stable before applying pressure.
• ויסמיידן אָווערלאָאַדינג: Do not attempt to split stones exceeding the maximum cutting height or length specified.
• זיכער שעפּן: Ensure the telescopic handle is securely extended and locked before applying force.

3. פּעקל אינהאַלט

ביים אויספּאַקן, וועריפיצירט אַז אַלע קאָמפּאָנענטן זענען פאַראַן און נישט געשעדיגט:

• 1 x Scheppach HSC130 Stone Splitter unit
• 1 x Durable reversible blade (pre-installed or included separately)
• 1 x Telescopic operating lever

The total weight of the package is approximately 41 kg.

4. סעטאַפּ

The Scheppach HSC130 Stone Splitter requires minimal assembly. Follow these steps to prepare the unit for operation:

1. אַנפּאַק: קערפאַלי באַזייַטיקן אַלע קאַמפּאָונאַנץ פון די פּאַקקאַגינג.
2. שטעלע: Place the main splitter unit on a flat, stable, and non-slip surface. Ensure there is ample space around the unit for safe operation.
3. צוטשעפּען שעפּן: Insert the telescopic operating lever into its designated slot on the splitter. Secure it firmly according to the mechanism (e.g., pin, bolt, or quick-release lever).
4. דורכקוקן בלייד: Verify that the reversible blade is correctly installed and free from damage.

Image 4.1: A clear view of the Scheppach HSC130 Stone Splitter, ready for operation.

5. אַפּערייטינג ינסטרוקטיאָנס

Follow these steps for safe and effective stone splitting:

1. אַדזשאַסטירן שנייד הייך: Use the adjustment mechanism to set the desired cutting height. The HSC130 can accommodate stones with a height between 25 mm and 140 mm. Ensure the blade is positioned correctly for the stone's thickness.
2. Position the Stone: Place the stone firmly on the spring-loaded table support, aligning the desired cutting line directly under the blade. Ensure the stone is stable and will not shift during the splitting process.
3. Engage Lever: Extend the telescopic operating lever to its full length for maximum leverage.
4. צולייגן דרוק: With a controlled and steady motion, pull the operating lever downwards. The blade will descend and apply pressure to the stone, causing it to split. Apply consistent force until the stone separates.
5. Remove Split Stone: Once split, carefully remove the two pieces of stone from the splitter.
6. איבערחזרן: Reposition the next stone and repeat the process as needed.

באַמערקונג: The spring-loaded table support helps achieve clean and precise cuts. For optimal results, ensure the stone is placed evenly.

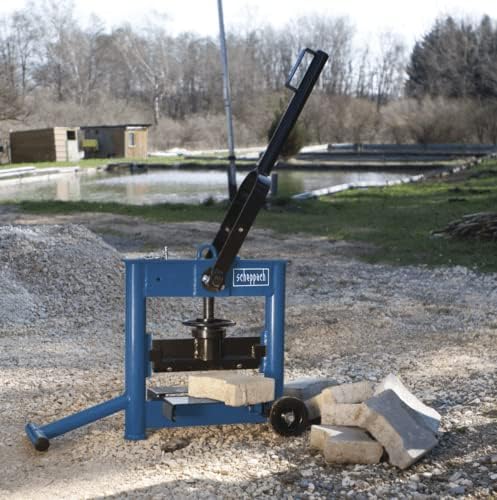

Image 5.1: The stone splitter positioned outdoors, ready to cut a paving stone.

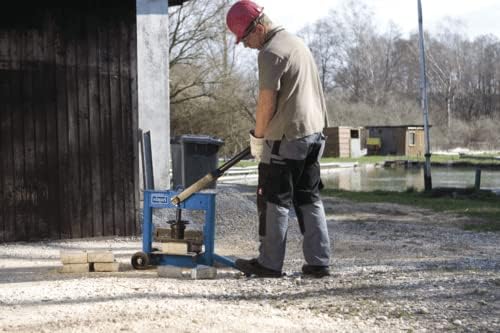

Image 5.2: A user demonstrating the operation of the Scheppach HSC130 Stone Splitter.

6. וישאַלט

Regular maintenance ensures the longevity and optimal performance of your Scheppach HSC130 Stone Splitter.

• רייניקונג: After each use, clean the splitter thoroughly to remove stone dust and debris. Use a brush or compressed air. Avoid using water directly on moving parts.
• בלייד דורכקוק: Regularly inspect the reversible blade for signs of wear, chipping, or damage. The blade has four cutting edges; rotate it to a fresh edge when one becomes dull. Replace the blade if all edges are worn or if it is severely damaged.
• שמירן: Apply a light coat of machine oil to moving parts, such as the lever pivot points and the blade guide mechanism, to ensure smooth operation and prevent rust.
• סטאָרידזש: Store the stone splitter in a dry, protected area, away from moisture and extreme temperatures. If storing for extended periods, consider applying a rust-preventative coating to exposed metal parts.
• פאַסטענער טשעק: Periodically check all bolts and fasteners to ensure they are tight. Tighten any loose fasteners.

7. טראָובלעשאָאָטינג

This section addresses common issues you might encounter with your stone splitter.

8. ספּעסאַפאַקיישאַנז

9. וואָראַנטי און שטיצן

וואָראַנטי: The Scheppach HSC130 Stone Splitter comes with a 2-יאָר פאַבריקאַנט ס וואָראַנטיביטע באַהאַלטן אייער קויפן-באַווייַז פֿאַר יעדע וואָראַנטי-פאָדערונג.

שטיצן: For technical assistance, spare parts, or warranty inquiries, please contact your retailer or the official Scheppach customer service. Refer to the contact information provided with your purchase documentation or visit the official Scheppach webפּלאַץ.
