Attwood ASM-Valve, FDV 0 White

1. הקדמה

This manual provides detailed instructions for the installation, operation, and maintenance of your Attwood ASM-Valve, FDV 0 White (Model: 99IFDV00-1). This product is designed for marine plumbing applications, specifically as a fuel distribution valve. Please read this manual thoroughly before installation and use to ensure proper function and safety.

2. זיכערקייַט אינפֿאָרמאַציע

ווארענונג: Improper installation or use of this valve can lead to fuel leaks, fire, explosion, or serious injury. Always follow all applicable marine safety standards and regulations.

• Ensure the engine is off and cool before beginning any installation or maintenance.
• Disconnect the battery to prevent accidental starting.
• ארבעט אין א גוט-ווענטילירטע געגנט צו פארמיידן אריינאטעמען ברענשטאָף פארע.
• האַלט אַ פייער לעשער גרייט צו נוצן.
• Use appropriate personal protective equipment (PPE), such as gloves and eye protection.
• Verify all connections are secure and leak-free before operating the vessel.
• Consult a qualified marine technician if you are unsure about any part of the installation or operation.

3. אויפשטעלן און אינסטאַלירן

The Attwood ASM-Valve, FDV 0 White is designed as a direct replacement for many existing marine fuel valves. Installation typically involves removing the old valve and securing the new one in its place.

3.1 מכשירים פארלאנגט

• Wrenches (appropriate sizes for threaded and flanged connections)
• Thread sealant (fuel-resistant type)
• שלאָס קלamps (if applicable for hose connections)
• Drip pan or absorbent rags

3.2 ינסטאַללאַטיאָן סטעפּס

1. צוגרייטן די שטח: Ensure the fuel system is depressurized and any fuel lines connected to the valve are drained. Place a drip pan beneath the valve to catch any residual fuel.
2. אַראָפּנעמען אַלטע ווענטיל: Carefully disconnect the fuel lines from the existing valve. Note the orientation of the old valve for correct installation of the new one.
3. דורכקוקן קאַנעקשאַנז: Clean any old sealant or debris from the fuel lines and mounting surface.
4. צולייגן סילאַנט: Apply a suitable fuel-resistant thread sealant to the threaded inlet connection of the new Attwood ASM-Valve.
5. אינסטאַלירן נייַ ווענטיל: Position the new valve and securely connect the threaded inlet. Then, attach the flanged outlet connection, ensuring a tight, leak-free seal.
6. זיכער מאָונטינג: If the valve requires mounting to a surface, use appropriate fasteners to secure it firmly.
7. רינען טשעק: After installation, slowly repressurize the fuel system and carefully inspect all connections for any signs of leaks. Address any leaks immediately before proceeding.

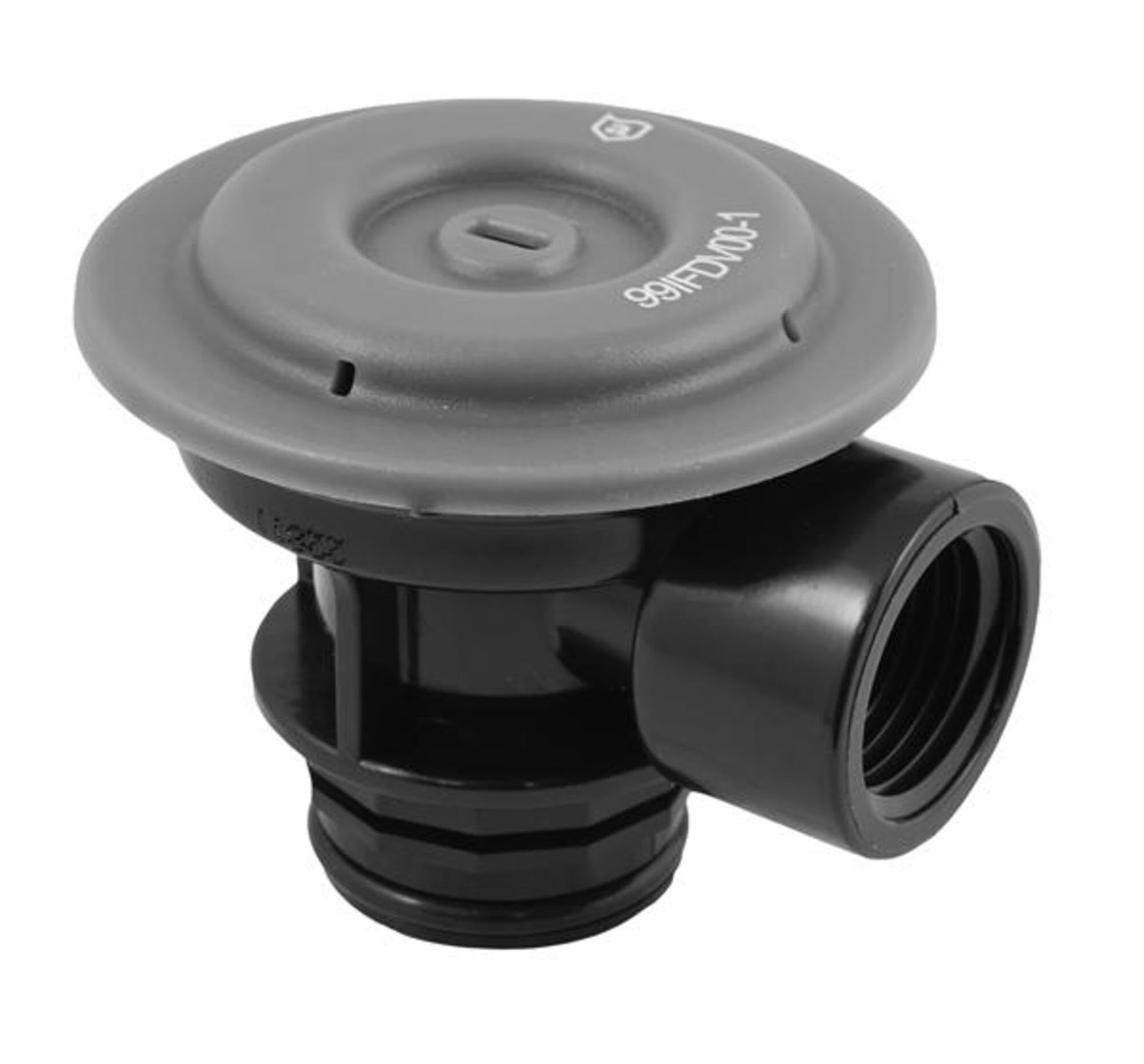

Figure 1: Attwood ASM-Valve, FDV 0 White. This image shows the compact design of the valve with its threaded inlet and flanged outlet connections, ready for marine fuel system integration.

4. אַפּערייטינג ינסטרוקטיאָנס

The Attwood ASM-Valve, FDV 0 White is a simple, single-port fuel distribution valve. Its operation involves controlling the flow of fuel within the marine fuel system.

• עפענען שטעלע: When the valve handle (if present, or internal mechanism) is in the "open" position, fuel is allowed to flow through the valve.
• פארמאכט שטעלע: When the valve handle is in the "closed" position, fuel flow is stopped.

Always ensure the valve is in the correct position for your intended operation (e.g., open for engine operation, closed for maintenance or storage).

5. וישאַלט

Regular inspection and maintenance will ensure the longevity and reliable performance of your Attwood ASM-Valve.

• וויסואַל דורכקוק: Periodically inspect the valve and surrounding connections for any signs of fuel leaks, corrosion, or physical damage.
• פֿאַרבינדונג אָרנטלעכקייט: Check that all threaded and flanged connections remain tight. Retighten if necessary, but do not overtighten.
• פאַנגקשאַנאַליטי טשעק: If the valve has a movable part, ensure it operates smoothly between open and closed positions.
• רייניקונג: Keep the exterior of the valve clean from dirt, grime, and fuel residue. Use appropriate cleaning agents that will not damage the valve material (Metal).
• פאַרבייַט: If any damage, persistent leaks, or operational issues are observed, replace the valve immediately with an authentic Attwood replacement part.

6. טראָובלעשאָאָטינג

This section addresses common issues you might encounter with your Attwood ASM-Valve.

6.1 Fuel Leakage

• סיבה: Loose connections, damaged threads, worn seals, or a cracked valve body.
• לייזונג:
  1. ענשור אַז אַלע קאַנעקשאַנז זענען רעכט טייטאַנד.
  2. Inspect threads for damage and reapply fuel-resistant thread sealant if necessary.
  3. If the valve body is cracked or seals are visibly damaged, the valve must be replaced.

6.2 Restricted Fuel Flow

• סיבה: Valve not fully open, internal blockage, or a faulty valve mechanism.
• לייזונג:
  1. Verify the valve is in the fully open position.
  2. If the issue persists, the valve may be internally obstructed or faulty and should be replaced.

באַמערקונג: Many users have found that replacing an old, failing factory valve with this Attwood valve resolves fuel delivery issues. If your boat is experiencing fuel problems, consider this valve as a potential solution before more extensive repairs.

7. ספּעסאַפאַקיישאַנז

8. וואָראַנטי אינפֿאָרמאַציע

The Attwood ASM-Valve, FDV 0 White comes with a לימיטעד וואָראַנטי. For specific terms, conditions, and duration of the warranty, please refer to the documentation included with your purchase or contact Attwood Marine directly. Keep your proof of purchase for warranty claims.

9. קונה שטיצן

If you have any questions, require technical assistance, or need to report an issue with your Attwood ASM-Valve, please contact Attwood Marine customer support.

פאַבריקאַנט: ATTWOOD

פאַבריקאַנט קאָנטאַקט אינפֿאָרמאַציע: אַטטוואָאָד מאַרינע

For the most current contact details and additional resources, please visit the official Attwood webפּלאַץ: www.attwoodmarine.com
