הקדמה
This manual provides essential information for the proper installation, operation, and maintenance of your Vulcan Hart Pilot, Oven, Burner replacement part (Model: 00-412787-00002). This genuine OEM part is designed for use in Vulcan commercial ovens and ranges to ensure optimal performance and safety. Please read these instructions thoroughly before attempting any installation or service.
וויכטיק סאַפעטי אינפֿאָרמאַציע
ווארענונג: ימפּראַפּער ייַנמאָנטירונג, אַדזשאַסטמאַנט, אָלטעריישאַן, דינסט אָדער וישאַלט קענען פאַרשאַפן פאַרמאָג שעדיקן, שאָדן אָדער טויט. לייענען די ייַנמאָנטירונג, אַפּערייטינג און וישאַלט אינסטרוקציעס ונ דורך איידער ינסטאָלינג אָדער סערוויסינג דעם עקוויפּמענט.
- Always disconnect power and gas supply before servicing.
- ייַנמאָנטירונג און סערוויס מוזן זיין דורכגעקאָכט דורך אַ קוואַלאַפייד ינסטאַללער, סערוויס אַגענטור אָדער די גאַז סאַפּלייער.
- Ensure all gas connections are leak-tested after installation.
- Keep the area around the appliance clear and free from combustible materials.
- טראָגט פּאַסיקע פּערזענלעכע שוץ-עקוויפּמענט (PPE) בעת אינסטאַלאַציע און וישאַלט.
ינסטאַלירונג אינסטרוקציעס
This pilot, oven, burner part is intended for replacement in compatible Vulcan commercial cooking equipment. Due to the nature of gas appliances, installation should only be performed by a certified technician or qualified service personnel.
- צוגרייטונג: Ensure the appliance is completely shut off and disconnected from all power and gas sources. Allow the appliance to cool down if it has been in operation.
- אַקסעס: Carefully open the appliance to gain access to the existing pilot, oven, burner assembly. Refer to your specific appliance's service manual for detailed access procedures.
- אַראָפּנעמען פון אַלט טייל: Disconnect any gas lines, electrical connections, and mounting hardware securing the old pilot, oven, burner. Carefully remove the old component.
- אינסטאַלאַציע פון נייַ טייל: Position the new Vulcan Hart Pilot, Oven, Burner (Model: 00-412787-00002) in the correct location. Secure it using the appropriate mounting hardware.
- פֿאַרבינדונגען: Reconnect all gas lines and electrical wiring according to the appliance's wiring diagram. Ensure all connections are tight and secure.
- ליק טעסט: After all connections are made, perform a thorough leak test on all gas connections using a suitable leak detection solution. Do not use an open flame for leak testing.
- פאַנגקשאַנאַליטי טשעק: Restore gas and power supply. Test the new pilot, oven, burner for proper ignition and flame characteristics as per the appliance's operating instructions.
- ריאַסעמבאַלינג: Close and secure all access panels on the appliance.

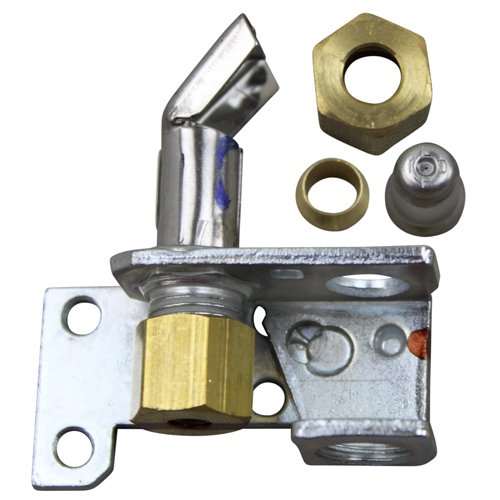

Image: Vulcan Hart Pilot, Oven, Burner replacement part. This image shows the component that replaces the existing pilot, oven, burner in compatible Vulcan commercial cooking equipment.
אַפּערייטינג ינסטראַקשאַנז
This component is a replacement part and does not have independent operating instructions. Its function is integrated into the overall operation of the Vulcan commercial oven or range it is installed in. Refer to the specific operating manual for your Vulcan appliance for instructions on how to ignite, operate, and shut down your equipment.
Once properly installed, the pilot, oven, burner will function as part of the appliance's heating system, providing the necessary flame for cooking operations.
וישאַלט
Regular maintenance of your Vulcan commercial cooking equipment, including the pilot, oven, burner, is crucial for longevity and efficient operation. Always ensure the appliance is disconnected from power and gas before performing any maintenance.
- דורכקוק: Periodically inspect the pilot, oven, burner for signs of wear, corrosion, or blockages. Check for proper flame appearance (a steady blue flame is ideal).
- רייניקונג: Keep the burner and pilot assembly clean from food debris, grease, and carbon buildup. Use a soft brush or compressed air to clear any obstructions. Do not use abrasive cleaners.
- Gas Line Check: Ensure gas lines leading to the burner are free from kinks or damage.
- פאַכמאַן סערוויס: It is recommended to have your commercial cooking equipment, including burner components, inspected and serviced annually by a qualified technician.
טראָובלעשאָאָטינג
If you experience issues with your appliance after installing the new pilot, oven, burner, consider the following common troubleshooting steps. For complex issues, contact a qualified service technician.
| פּראָבלעם | מעגלעך סיבה | לייזונג |
|---|---|---|
| בורנער טוט נישט אָנצינדן | No gas supply; blocked pilot or burner orifice; faulty igniter/spark module; loose electrical connection. | Check gas valve; clean pilot/burner; inspect igniter; verify electrical connections. |
| Weak or yellow flame | Insufficient air supply; partially blocked burner orifice; incorrect gas pressure. | Ensure proper ventilation; clean burner; consult technician for gas pressure adjustment. |
| גאַז גערוך דעטעקטירט | גאַז רינען. | Immediately shut off gas supply, ventilate area, and contact a qualified technician. Do not operate the appliance. |
| Burner cycles on and off frequently | Faulty thermostat or sensor; pilot light issues. | Inspect thermostat/sensor; ensure pilot light is stable. Contact service. |
ספּעסאַפאַקיישאַנז
| מאָדעל נומער | 00-412787-00002 |
| סאָרט | ווולקאַן האַרט |
| פּראָדוקט דימענשאַנז | 5 X 6 X 9 אינטשעס |
| פּונקט וואָג | 4.8 אונסעס |
| טייל טיפּ | Pilot, Oven, Burner (Genuine OEM) |
וואָראַנטי און שטיצן
As a genuine OEM (Original Equipment Manufacturer) part, this Vulcan Hart Pilot, Oven, Burner is typically covered by the manufacturer's standard warranty for replacement parts. Specific warranty terms and duration may vary. Please retain your proof of purchase.
For warranty claims, technical support, or to locate a qualified service technician, please contact Vulcan Hart customer service or refer to their official website. Always provide the model number of your appliance and the part number (00-412787-00002) when seeking support.
פאַבריקאַנט: ווולקאַן האַרט
